COMMERCIAL - Sink
|
|
|
|
|
COMMERICAL |
Overall Dimension (mm)
|
Bowl width x length x depth (mm) |
|
C1 - Double Drain
1180 x 480 x 180 |
|
 |
BM31 - Single Bowl
1200 x 600 x 265
Depth 70
|
|
|
|
BM22
- Double Bowl
1200 x 600 x
265
Depth 70
|
|
 |
AUS50 - Single Bowl
497 x 405 x 160
|
|
 |
A71 - Single Bowl
368 x 368 x 152
|
|
|
|
|
|
|
|
|
|
COMMO - Laundry Sink
|
|
|
|
|
COMO LAUNDRY |
Overall Dimension (mm) |
Bowl width x length x depth (mm) |
|
C501a - SingleBowl
610 x 510 x 250 |
528 x 430 x 250
|
|
COMMO - Under
Counter Sink |
 |
C507 min - Single Bowl
360 x 300 x 160
|
315 x 260 x 160
|
|
C507 - Single Bowl
410 x 350 x 165
|
372 x 315 x 158
|
 |

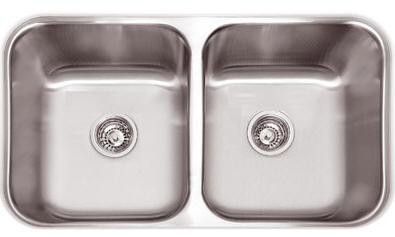

CD41 - Double Bowl
800 x 460 x 180 |
528 x 430 x 250 |
|
|
|
|
|
|
|
|
LUNA - Round Bowl with and wihout drain
|
|
|
|
|
LUNA |
Overall Dimension (mm)
|
Bowl width x length x depth (mm) |
|

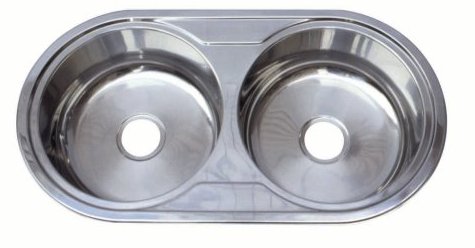

L613/L690 - Double Bowl
890 x 475 x 180
|
385 x 385 x 180
385 x 385 x 180
|
|

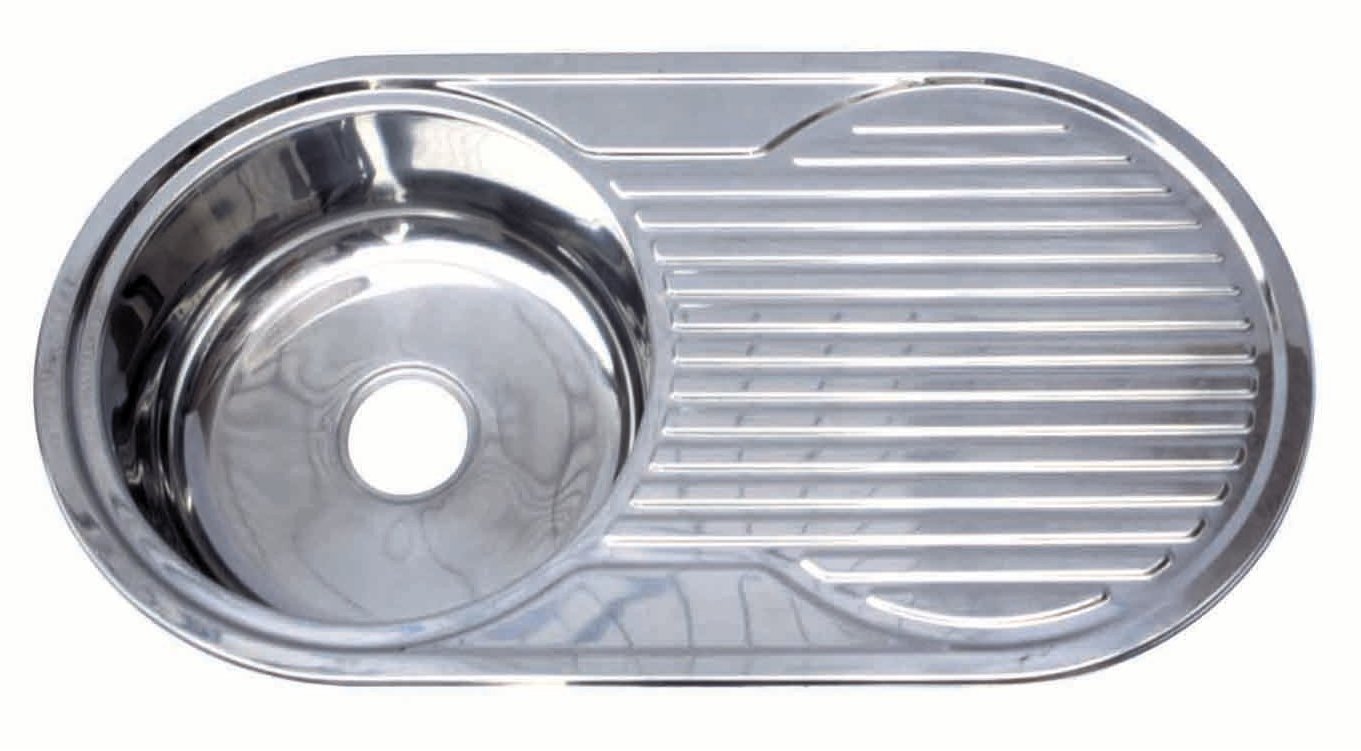

L89 -
Single Bowl
890 x 475 x 180
|
385 x 385 x 180
|
|
L515 - Single Bowl
445 x 170
|
385 x 170
|
|
|
|
|
|
|
|
|
NEPTUNE - available in Right or Left hand drain
|
|
|
|
|
NEPTUNE |
Overall Dimension (mm) |
Bowl width x length x depth (mm) |
 |
Double Bowl
SP/NE601/FF770
765 x 480 x 180
|
320 x 400 x 180
320 x 400 x 180
|
 |
NE202 - Single Bowl
765 x 485 x 180
|
320 x 400 x 180
320 x 400 x 180
|
 |
NE115 - Double Bowl
1000 x 480 x 180
|
320 x 400 x 180
210 x 290 x 120
|
 |
NE103 - Double Bowl
1080 x 480 x 180
|
320 x 400 x 180
280 x 290 x 130 |
 |
NE111- Double Bowl
1180 x 480 x 180
|
320 x 400 x 180
320 x 400 x 180
|
|
|
|
|
|
|
|
|
QUADRATO Undermount or Top Mount
|
|
|
|
|
Quadrato |
Overall Dimension (mm) |
Bowl width x length x depth (mm) |
 |
Q4034 - Single Bowl
450 x 390x 250
|
400 x 340 x 250
|
|
|
Q4040 -
Single Bowl
450 x
450 x 250 |
400 x 400 x 250
|
 |
Q6145 - Double Bowl
610 x 450 x 250
|
340 x 400 x 250
200 x 400 x 250 |
|
Q8080 -
Double Bowl
737 X 510
X 250 |
330 x 460 x250
330 x 460 x250 |
|
|
|
|
|
|
|
|
SORRENTO Straight drain available in Left or Right |
|
|
|
|
|
|
|
|
SORRENTO |
Overall Dimension (mm) |
Bowl width x length x depth (mm) |
|
SP/NE601 - Double Bowl
780 x 480 x 180
|
320 x 400 x 180
320 x 400 x 180
|
|
SP201 - Single Bowl
765 x 480 x 180
|
320 x 400 x 180
|
|
SP106 - Double Bowl
1000 x 480 x 180
|
320 x 400 x 180
210 x 290 x 120 |
|
SP102 - Double Bowl
1080 x 480 x 180
|
1080 x 480 x 800
|
320 x 400 x 180
280x 290 x 130
1 |
|
320 x 400 x 180
280 x 290 x 130
|
|
SP112 - Double Bowl
1180 x 480 x 180
|
320 x 400 x 180
320 x 400 x 180
|
|
SP1250 - Double Bowl
1200 x 505 x 210
|
390 x 350 x 210
390 x 350 x 210
|
|
Double Drain
SP114 - Double Bowl
1380 x 480 x 180
|
320 x 400 x 180
320 x 400 x 180
|
|
|
 |
|
|
